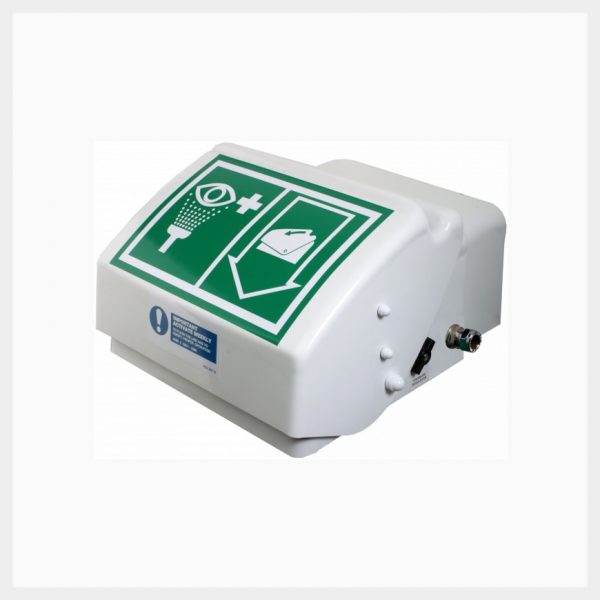

Wall Mounted Covered Emergency Eye/Facewash
Hughes Safety H-STD45G is a wall-mounted covered emergency eye/face wash intended for indoor use but may, where practical, be located outdoors in warmer climates. Features an integral lid to protect the bowl and diffusers against dust and debris at all times. When opened, the flow of flushing water begins immediately. Designed to be quick and simple to operate with high flow rate aerated diffusers for improved washing. Backed by our 2 year warranty. Available in pedestal-mounted H-STD45GSP, or bench-mounted H-STD45GT models. Optional foot control pedal H-TFC.
Weight | 3 kg |
---|---|
Dimensions | 320 × 362 × 227 mm |
Features | Location: Indoor |
Eye/face Wash Bowl/lid | Acrylic Capped ABS |
Water Inlet | 1/2ā Female BSP |
Design Operating Pressure | 2.0 to 6 BAR G (29 to 87 PSI) |
Test Pressure | 10.3 BAR G (149 PSI) |
Minimum Flow Rates | Eye/Face Wash: 12 litres/minute minimum |
Minimum Ambient Operating Temperature | 5Āŗ C (41Āŗ F) |
Maximum Ambient Operating Temperature | 35Āŗ C (95Āŗ F) |
Activation/operation | Pull lid forward to operate (optional foot treadle control for hands free operation) |
